Use:
The chocolate chips depositing machine is used for producing particle chocolate chips. It can produce chocolate chips with a tail on top (like water drops), in the same machine it can also produce chocolate chips without a tail on top (like button).
Main Parameter for Rotary Type Chips Machine
| Model | GDJ400 | GDJ600 | GDJ800 | GDJ1000 | GDJ1200 | GDJ1500 |
| Width of conveyor belt (mm) | 400 | 600 | 800 | 1000 | 1200 | 1500 |
| Main motor power(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| Capacity of cooling compressor (HP) | 2sets of 3HP | 2sets of 5HP | 2sets of 5HP | 2sets of 8HP | 2sets of 8HP | 4sets of 8HP |
| Length of cooling tunnel (m) | 20 | 20 | 20 | 20 | 20 | 30 |
| Temperature in cooling tunnel (Celsius degree) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Remark | Length of cooling tunnel and capacity of cooling compressor can be customized as per customers' demand. |

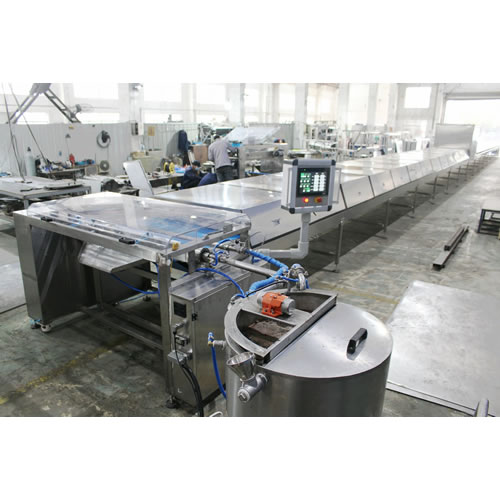

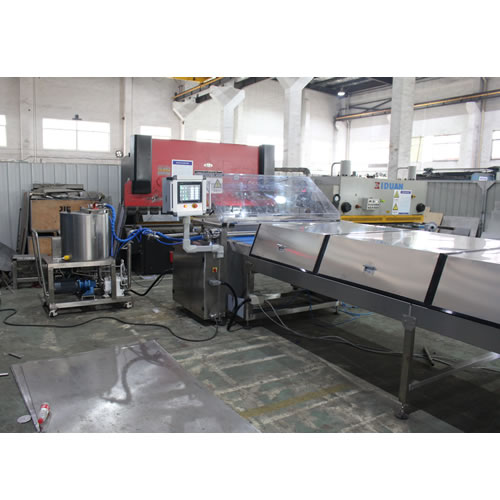

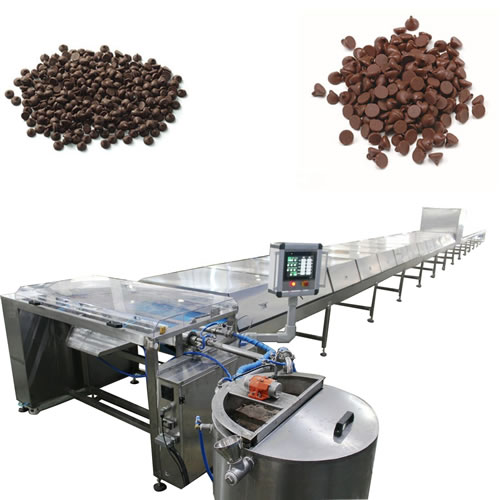

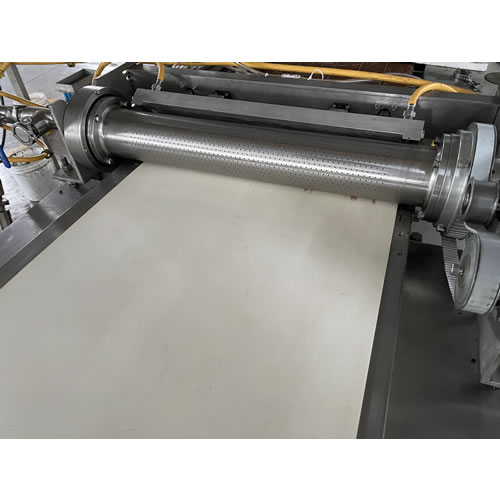

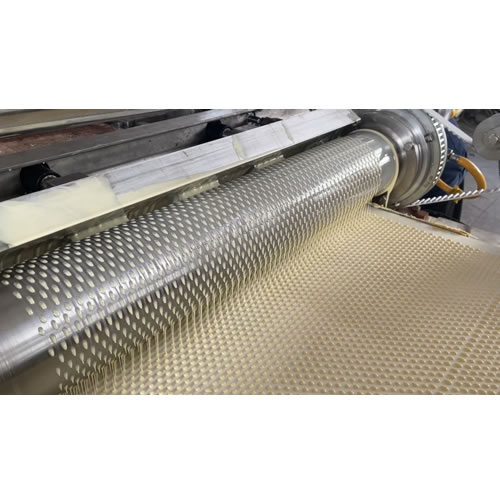

Pictures of machine:
