Use:
This colloid mill machine can grind cacao nibs to cacao liquor. It is also used for grinding peanut butter, sesame jam etc.
Main Parameter:
| Model | JM50 | JM80 | JM110 | JM130 |
| Diameter of rotor(mm) | 50 | 80 | 110 | 130 |
| Fineness(μm) | 2-50 | 2-50 | 2-50 | 2-50 |
| Capacity(t/h) | 0.005-0.03 | 0.1-0.5 | 0.3-1.2 | 0.4-2 |
| Main power(kw) | 1.1 | 4 | 7.5 | 11/15 |
| Rotation speed(m/min) | 2820 | 2890 | 2900 | 2930 |
| Machine size(mm) | 550*250*600 | 700*350*1000 | 750*450*1100 | 1000*500*1100 |
| Machine weight(kg) | 80 | 240 | 300 | 400 |
| Model | JM180 | JM240 | JM300 |
| Diameter of rotor(mm) | 180 | 240 | 300 |
| Fineness(μm) | 2-50 | 2-50 | 2-50 |
| Capacity(t/h) | 0.8-6 | 4-12 | 6-25 |
| Main power(kw) | 18.5/22 | 37/45 | 75/90 |
| Rotation speed(m/min) | 2930 | 2970 | 2970 |
| Machine size(mm) | 1050*500*1200 | 1350*510*1300 | 1500*700*1450 |
| Machine weight(kg) | 450 | 1000 | 1650 |

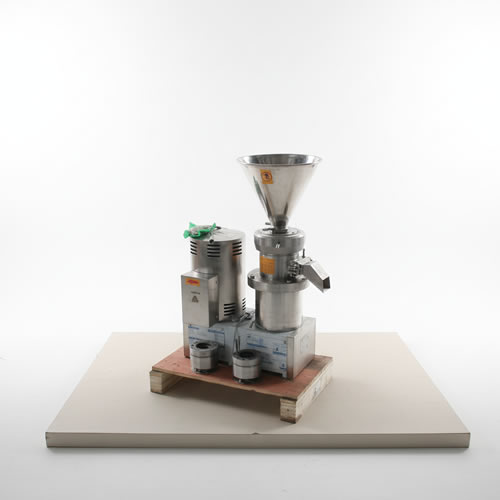

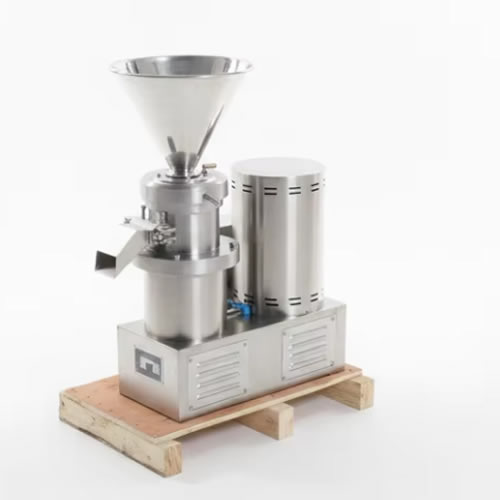

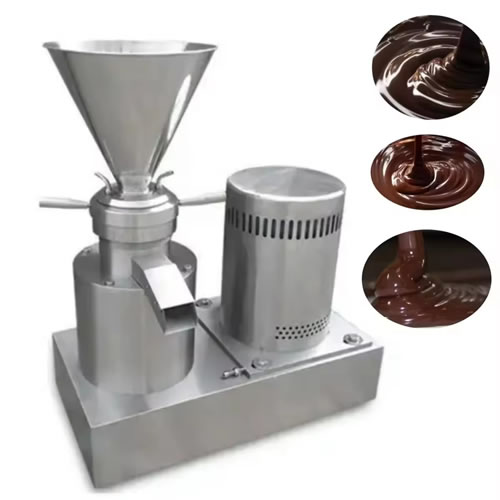

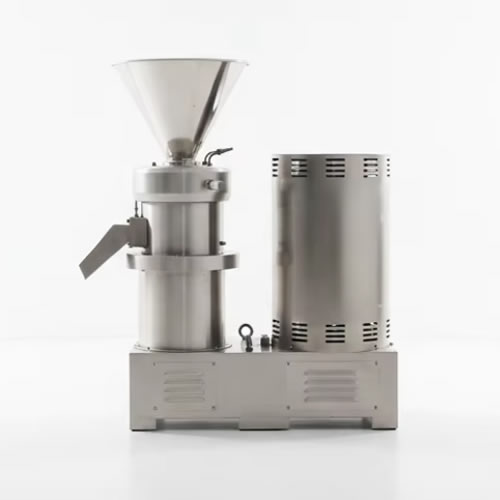

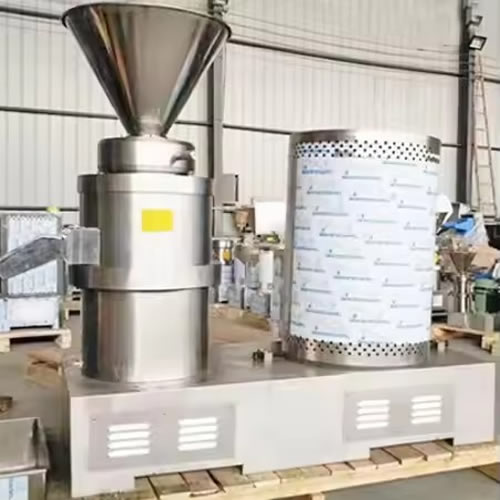

Pictures of machine:
