Use:
The chocolate refiner and conche machine is one of the key equipment in the chocolate production line, it is mainly used for mixing, grinding and conching chocolate raw materials (cocoa powder, cocoa butter, sugar powder, milk powder, etc.) to very fine size chocolate paste.
Main Parameter:
| Model | TJMJ20 | TJMJ40 | TJMJ100 | TJMJ500 | TJMJ1000 | TJMJ2000 | TJMJ3000 |
| Capacity (L) | 20 | 40 | 100 | 500 | 1000 | 2000 | 3000 |
| Main motor power(kw) | 1.5 | 2.2 | 5.5 | 15 | 22 | 37 | 55 |
| Heating power(kw) | 0.6 | 2 | 2.5 | 6 | 6 | 9 | 9 |
| Fineness (micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Duration (hour) | 7-9 | 7-9 | 12-16 | 12-18 | 14-20 | 18-22 | 18-22 |
| Machine size(mm) | 920*600*1110 | 1100*800*1100 | 1200*1150*1050 | 2500*1080*1370 | 2780*1330*1800 | 3320*2000*1950 | 4200*2000*1950 |
| Machine weight(kg) | 300 | 360 | 880 | 2800 | 3500 | 5300 | 8500 |
| Optional | Magnetic filter: filter the possible metal particles from the refiner conche machine |

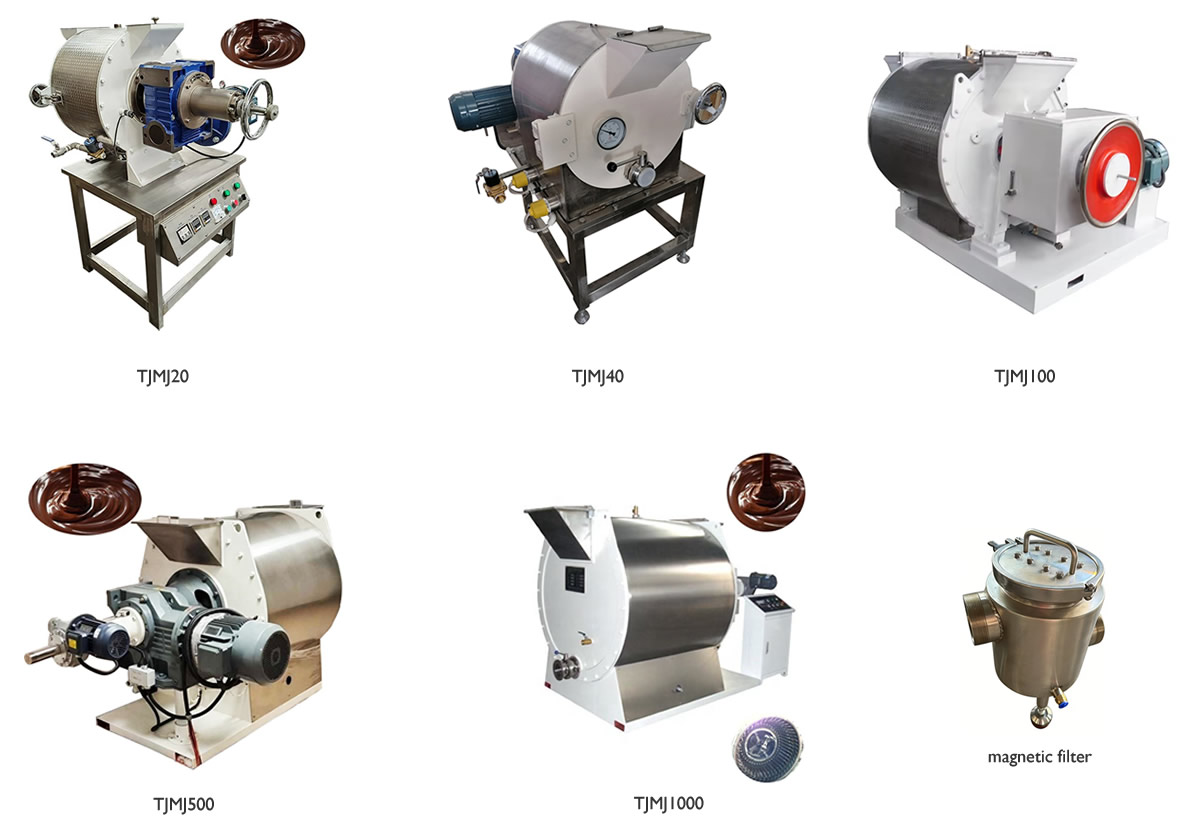

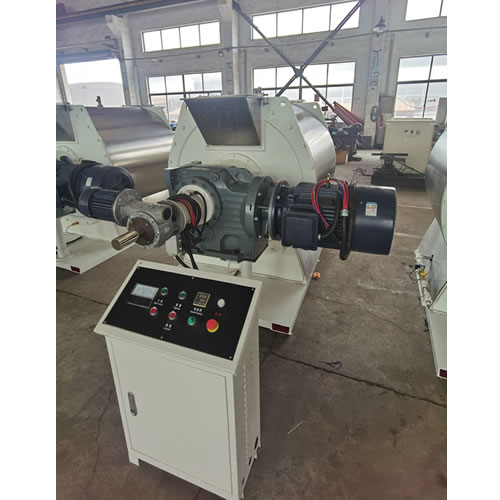

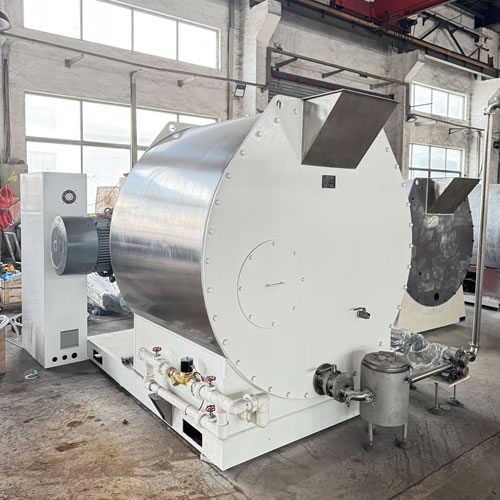

Pictures of machine:
