Use:

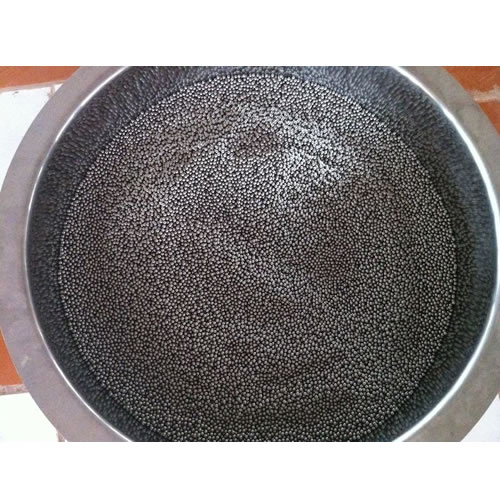

Chocolate ball mill machine is used for fine milling chocolate paste to very fine size through friction between steel balls.
Main Parameter:
| Model | TQMJ5 | TQMJ20 | TQMJ50 | TQMJ100 | TQMJ500 | TQMJ1000 |
| Capacity (L) | 5 | 20 | 50 | 100 | 500 | 1000 |
| Grinding time(hour) | 4-8 | 4-8 | 8-10 | 8-10 | 10-12 | 10-12 |
| Fineness( micron ) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main power(kw) | 3.7 | 4.2 | 6 | 8 | 21 | 28 |
| Heating power(kw) | 2 | 2 | 3 | 3 | 6 | 6 |
| Machine size(mm) | 350*700*650 | 400*700*700 | 500*900*800 | 800*700*1400 | 1650*1100*1800 | 1900*1300*2000 |
| Machine weight(kg) | 80 | 100 | 360 | 500 | 1200 | 2000 |
| The capacity of ball mill tank can be customized as per customers' demand. |

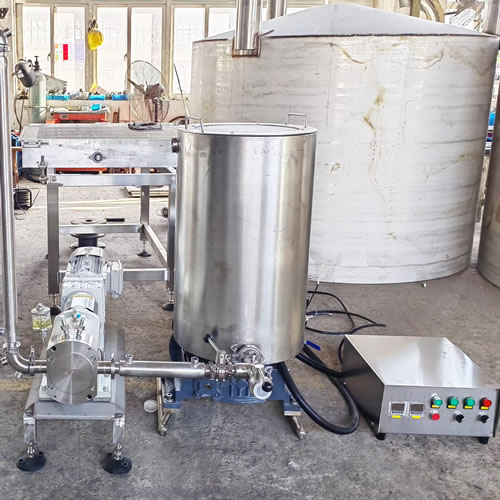

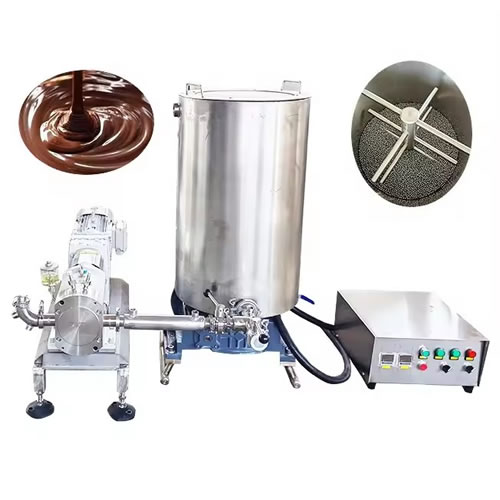

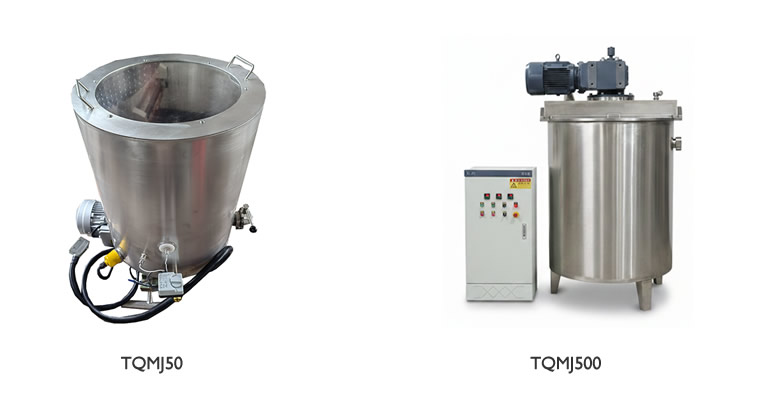

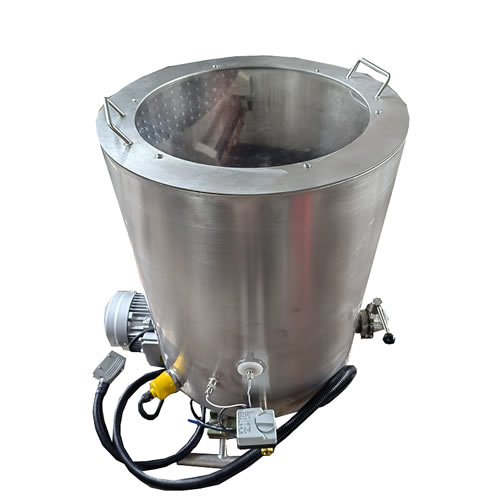

Pictures of machine:
