Use:
The chocolate chips depositing machine is used for producing particle chocolate chips. It can produce chocolate chips with a tail on top (like water drops), in the same machine it can also produce chocolate chips without a tail on top (like button).
Main Parameter for Injection Type Chips Machine
| Model | TQDJ400 | TQDJ600 | TQDJ800 | TQDJ1000 | TQDJ1200 |
| Width of conveyor belt (mm) | 400 | 600 | 800 | 1000 | 1200 |
| Production Capacity (kg/h) | 35 (if 0.1g)
85 (if 1g) | 55 (if 0.1g)
135 (if 1g) | 70 (if 0.1g)
170 (if 1g) | 90 (if 0.1g)
225 (if 1g) | 110 (if 0.1g)
275 (if 1g) |
| Machine power(kw) | 10 | 12 | 15 | 18 | 23 |
| Capacity of cooling compressor(HP) | 3 | 5 | 8 | 10 | 10 |
| Length of cooling tunnel (m) | 10 | 10 | 10 | 10 | 10 |
| Temperature in cooling (Celsius degree) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Machine weight(kg) | 1800 | 2300 | 2800 | 3600 | 4000 |
| Remark | Length of cooling tunnel and capacity of cooling compressor can be customized as per customers' demand. |

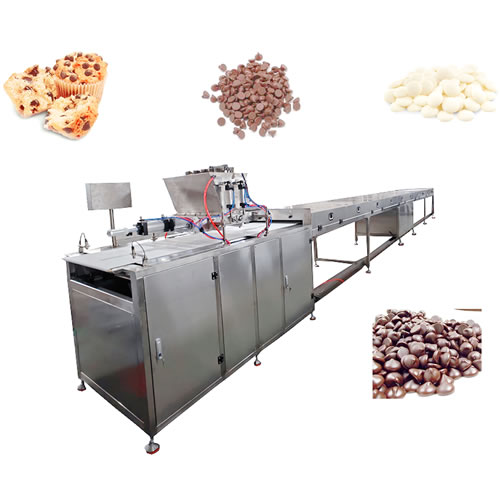

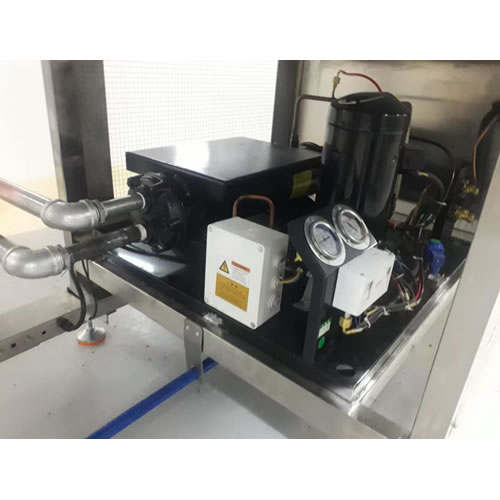

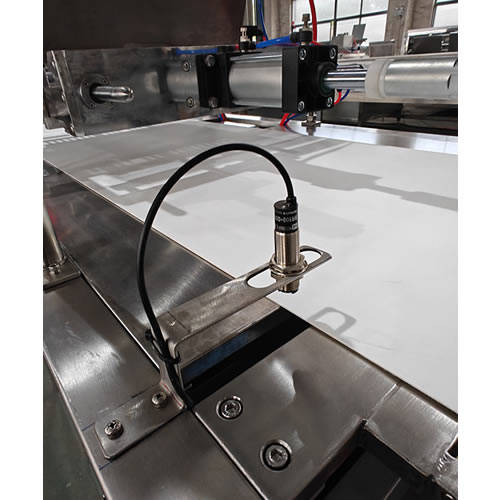

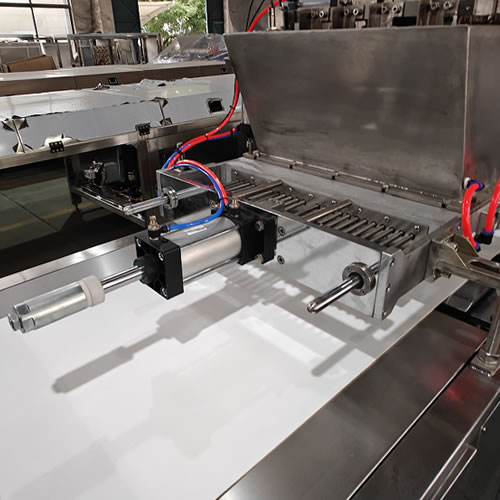

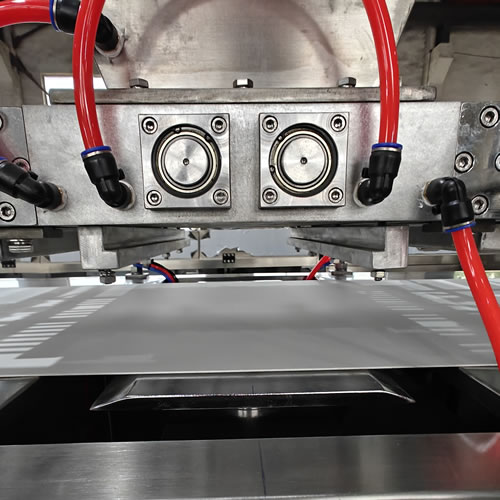

Pictures of machine:
