Use:
1. This chocolate moulding machine takes one-shot technology, which have all functions of pre-heating empty molds, depositing chocolate into molds, vibrating chocolate in molds, cooling chocolate in molds, de-molding chocolate from molds and conveying chocolate to next station automatically.
2. From this chocolate molding machine, you can produce pure chocolate, chocolate with filling stuff, two colors chocolate, nuts mixing chocolate and wafer chocolate etc.
3. Real chocolate and compound chocolate are both workable to make in this machine.

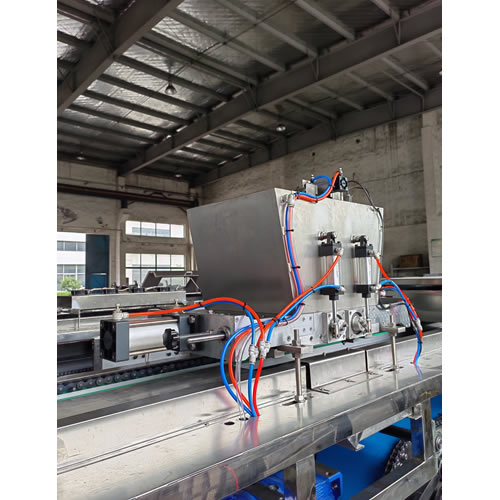

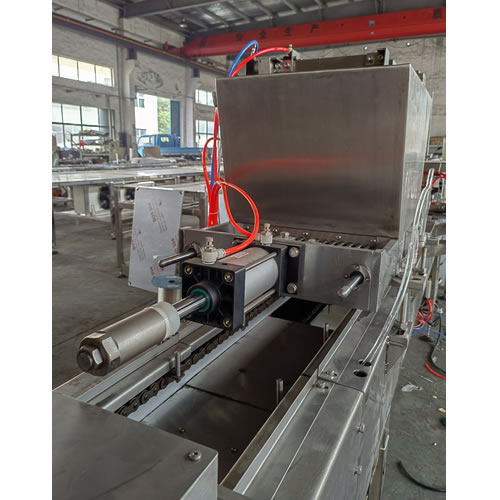

4.There are two types of depositor, one is pneumatic type, another one is servo type.
Main Parameter:
| Model | TQJJ150 | TQJJ175-1 | TQJJ175-2 | TQJJ175-3 |
| Capacity(kg/h) | 200 | 250-300 | 250-300 | 250-300 |
| Main power(kw) | 6 | 9 | 23 | 31 |
| Quantity of molds required (piece) | 200 | 300 | 350 | 400 |
| Mold Size(mm) | 275*175 | 320*200 | 320*200 | 320*200 |
| Capacity of cooling compressor | / | 10 | 15 | 15 |
| Machine size(mm) | 4000*502*1500 | 16000*1000*1600 | 16000*1000*1800 | 19000*1000*2200 |
| Machine weight(kg) | 500 | 3500 | 4500 | 5200 |
| Model | TQJJ510-1 | TQJJ510-2 | TQJJ510-3 | TQJJ275-1 |
| Capacity(kg/h) | 400-500 | 400-500 | 400-500 | 500 |
| Main power(kw) | 21 | 25 | 35 | 60 |
| Quantity of molds (piece) | 300 | 350 | 410 | 600 |
| Mold Size(mm) | 510*200 | 510*200 | 510*200 | 275*175 |
| Capacity of cooling compressor | 15 | 15 | 20 | 32 |
| Machine size(mm) | 16000*1200*1600 | 16000*1200*1800 | 19000*1200*2200 | 27600*3300*1600 |
| Machine weight(kg) | 4000 | 5000 | 5500 | 6500 |
| Optional | 1.pneumatic depositor or servo depositor |

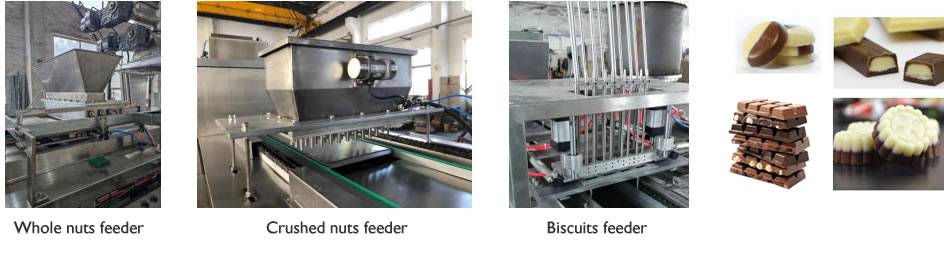

| 2.nuts feeder (crushed nuts, whole nuts) |
| 3.wafer feeder |

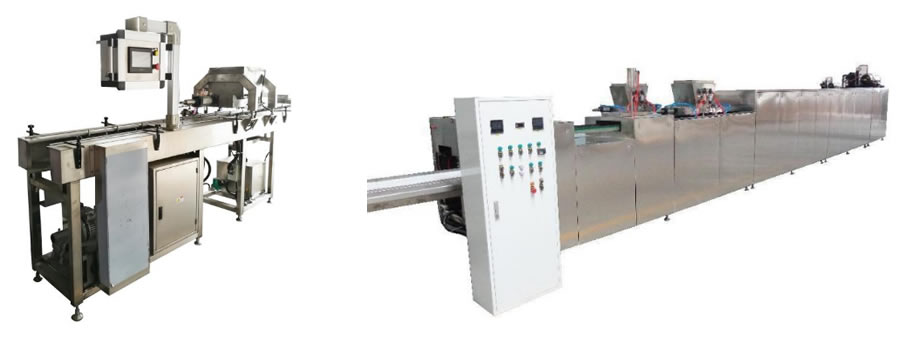

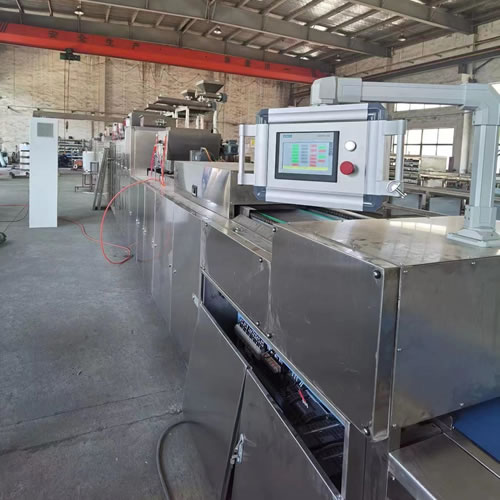

Picture of machine:

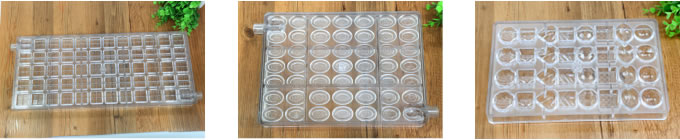

We can customize the chocolate molds as per your molds design.
Available size: 275*175mm,280*200mm,510*200mm and etc
Material of molds: polycarbonate
