Use:
This chocolate tank is used for storage of fine grinded chocolate paste to keep required temperature of chocolate. It can also melt chocolate block to liquid chocolate.
Main parameter:

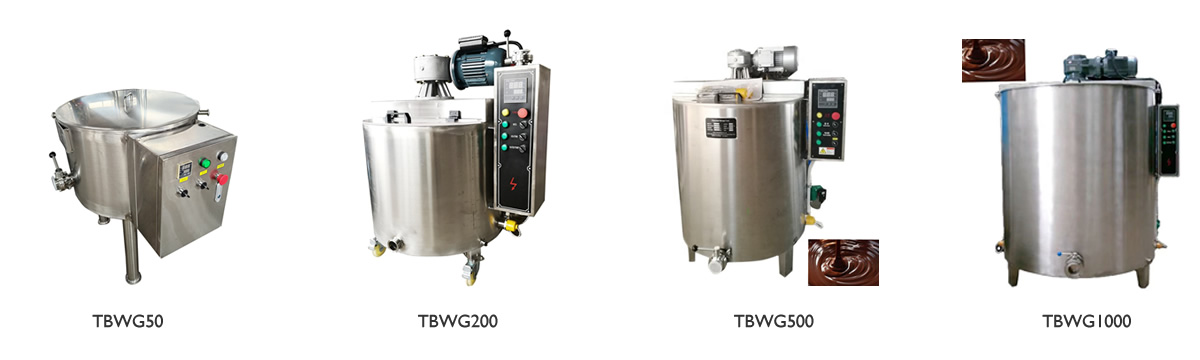

| Model | TBWG100 | TBWG500 | TBWG1000 | TBWG2000 | TBWG3000 | TBWG5000 |
| Capacity(L) | 100 | 500 | 1000 | 2000 | 3000 | 5000 |
| Motor power(kw) | 0.55 | 1.5 | 2.2 | 3 | 5.5 | 7.5 |
| Heating power(kw) | 2 | 4 | 6 | 9 | 9 | 9 |
| Machine size(mm) | Φ650*950 | Φ1000*1380 | Φ1220*1850 | Φ1700*2100 | Φ1900*2150 | Φ2200*2250 |
| Machine weight(kg) | 150 | 500 | 900 | 1500 | 2000 | 3100 |
| Optional | The insulation layer can be added base on additional cost. |
| Remark | The capacity of tank can be customized from 50L to 10000L. |

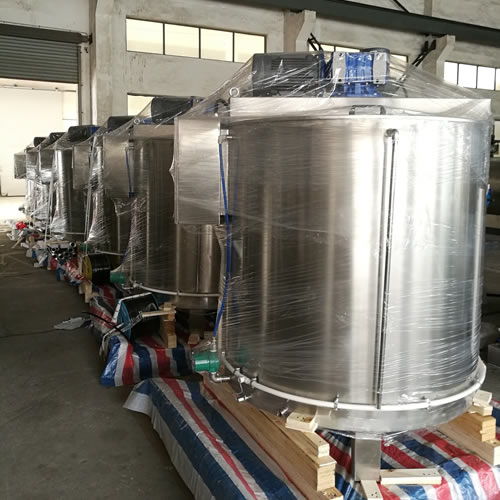

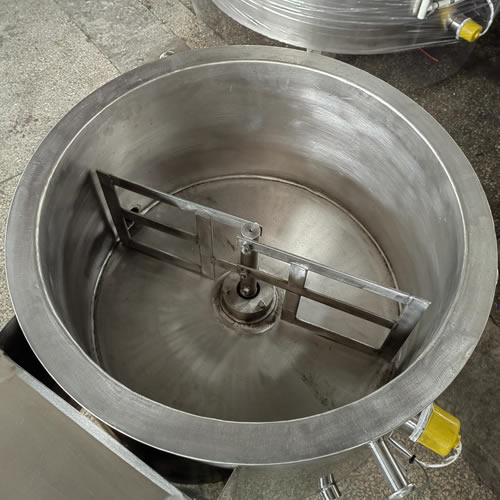

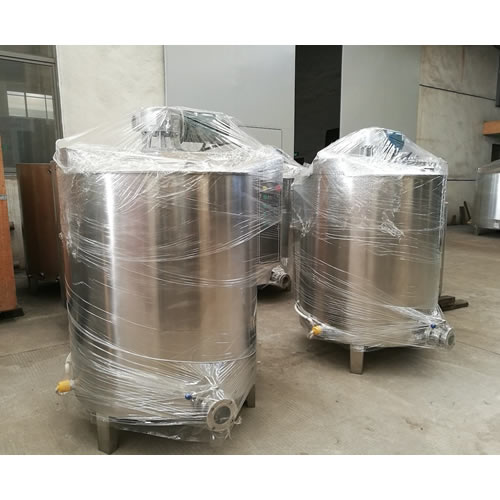

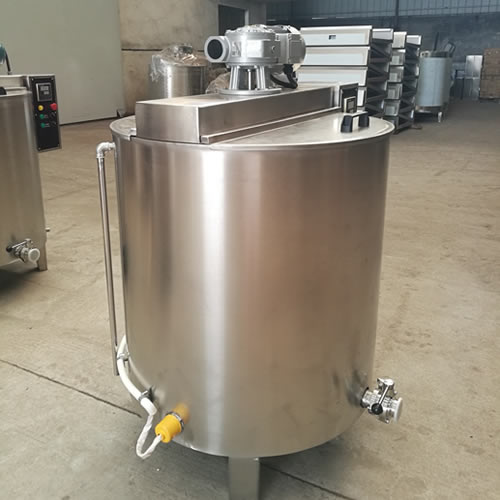

Pictures of machine:
