Use:
The fat melting tank is used for melting solid cocoa butter or substitute fat to liquid format.
Main Parameter for Tank in Round Cylinder Shape:
| Model | TRYG100 | TRYG200 | TRYG500 | TRYG1000 | TRYG2000 |
| Capacity (L) | 100 | 240 | 500 | 1000 | 2000 |
| Heating power (kw) | 4 | 4 | 6 | 6 | 9 |
| Machine size(mm) | Φ650*950 | Φ710*1250 | Φ1000*1380 | Φ1450x1500 | Φ1500x2000 |
| Machine weight (kg) | 120 | 250 | 450 | 650 | 850 |
| Optional | Heating tube: to shorten melting time |
| Insulation: to avoid hurt by heat |
| Remark | The capacity of tank can be customized as per customers' demand. |
Main Parameter for Tank in Rectangle Shape:
| Model | TRYG240 | TRYG360 | TRYG500 | TRYG1000 | TRYG1500 |
| Heating power(kw) | 4 | 6 | 6 | 9 | 9 |
| Capacity(L) | 240 | 360 | 500 | 1000 | 1500 |
| Dimension of machine(mm) | 1300*970*1250 | 1900*970*1250 | 1800*680*1000 | 2300*900*900 | 2950*1460*950 |
| Weight of machine(kg) | 250 | 350 | 400 | 650 | 900 |
| Optional | Heating tube: to shorten melting time |
| Insulation: to avoid hurt by heat |
| Remark | The capacity of tank can be customized as per customers' demand. |

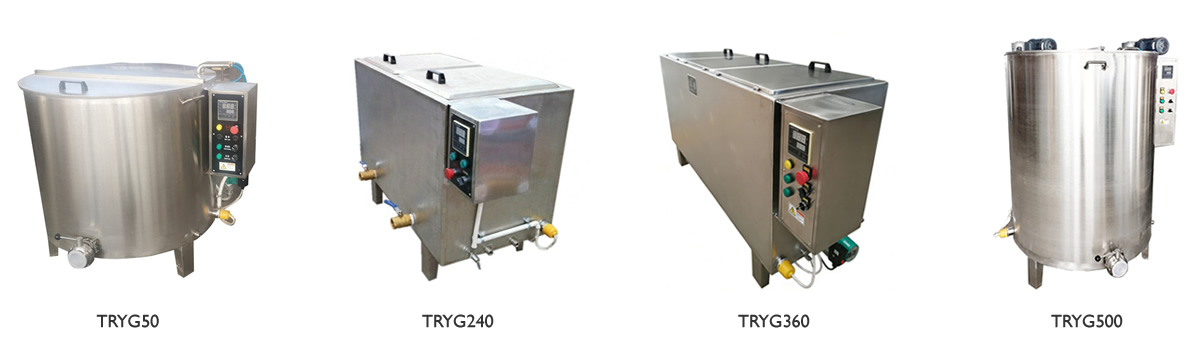

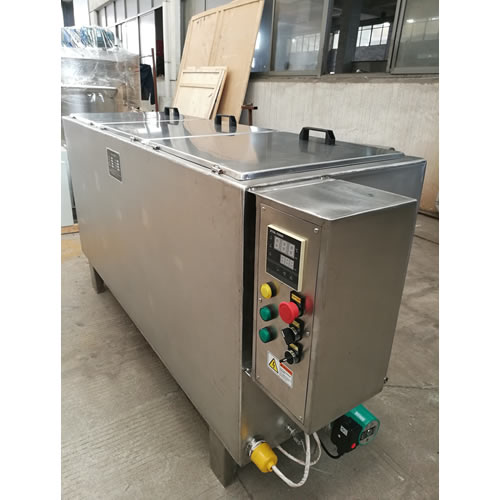

Pictures of machine:
